Endless Pools - X500

Cabinet

  • Mocha
  • Gray

Shell

  • Alpine White
  • Ice Gray

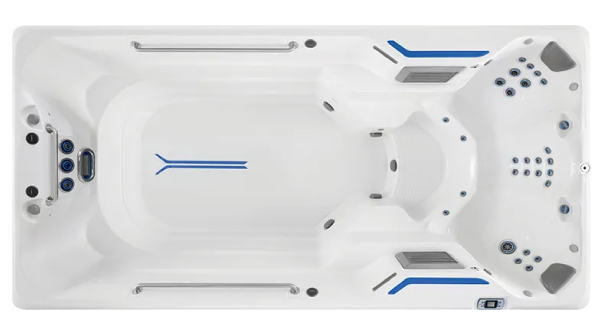

Endless Pools - X500

Total-Body Fitness & Fun

Our compact swim spa with our unique, SwimCross® jetted current! Designed for fitness, the X500 is just as suitable for family fun, relaxation, and recreational swimming.

Seating Capacity 3
Water Capacity 1,650 Gallons
Dimensions 15’ L x 89" W x 50" H
457 cm L x 226 cm W x 127 cm H
Depth 40" (102 cm)
Weight Dry:2,705 lbs. Filled:18,200 lbs.
Total Jets 27

Optional Spa Ownership Enhancements

  • Optional Spa Ownership Enhancements *

Product total

Options total

Grand total

Additional Specifications

Hydromassage Seats 3
Hydromassage Jets - 27 1 Large Jet, 2 Rotary Jets, 2 Directional Jets, 22 Mini Jets
Hydromassage Jet Pump 2.5 HP Continuous Duty; 5.2 HP Breakdown Torque – Dual Speed Pump
Control System LCD Control Panel; 230v/60amp, 60 Hz, includes G.F.C.I. protected sub-panel
Water Features 2 Illuminated Waterfalls
Water Care System UVC + CD Ozone
Effective Filtration Area 200 Square Feet
Lighting System 16 Multi-Color LED Lights, Exterior LED Lighting (optional)
Current SwimCross® current featuring 3 round Swim Jets, 1 River Jet
Electrical Requirements 230v/30amp; 230v/60amp (optional), includes GFCI sub-panel
Heater 4000 watt
Swim Jet Pumps 2.5HP Continuous Duty; 5.2 HP Breakdown Torque – (1) Single Speed &
(1) Single Speed”2.5HP
Substructure 14-Gauge Galvanized Steel Frame with Thermoformed ABS Base Pan
Energy Efficiency Certified to the APSP 14 National Standard and the California Energy
Commission (CEC) in accordance with California Law
Music Option 8 Speakers + Subwoofer, Bluetooth® Enabled
