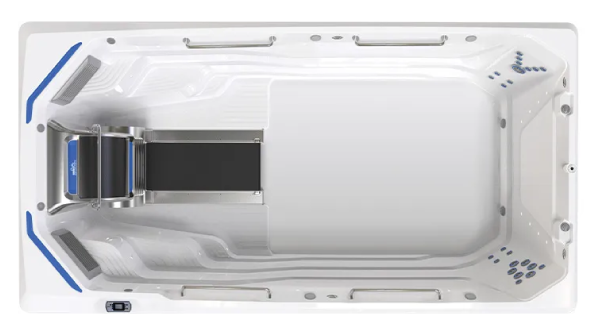

Endless Pools - E550
Welcome to the VIP Lane
This swim spa is built for action! The hydromassage jets are standing-room only; no seating gives you more room for vigorous pool workouts and any swim stroke.
Water Capacity
2,390 Gallons / 8,935 litres
Dimensions
15’ L x 94" W x 58" H 457 cm L x 239 cm W x 147 cm H
Depth 48" (122 cm)
Depth 48" (122 cm)
Weight
Dry: 1,680 kg Filled:11,390 kg
Total Jets
23
Additional Specifications
Hydromassage Jets - 23
1 Large Jet, 6 Rotary Jets, 16 Mini Jets
Hydromassage Jet Pump
2.5 HP Continuous Duty; 5.2 HP Breakdown Torque - 1 Speed Pump
Electrical Requirements
Touchscreen Control Panel; 230v/60amp, 60 Hz, includes G.F.C.I. protected sub-panel
Swim Power Unit /strong>
5 HP Hydraulic Power Un
Heater
4000 watt
Current
Hydrodrive™ Technology
1:08/100 yd (1:11/100 m) max pace with 116 pace setting
1:08/100 yd (1:11/100 m) max pace with 116 pace setting
Control System
LCD Control Panel 230V/50 Hz
24A + 32A
24A + 32A
Water Care System
UVC + CD Ozone
Effective Filtration Area
18 m²
Lighting System
24 Multi-Colour LED Points of Lights & Exterior Illumination Bar
Substructure
2 mm Galvanised Steel Frame
Base Pan
Thermoformed ABS Base Pan
Energy Efficiency
Certified to the APSP 14 American Standard and the California Energy Commission (CEC) in accordance with California Law
Music Option
8 Speakers + Subwoofer, Bluetooth® Enabled
