Endless Pools - E2000
Cabinet
Shell

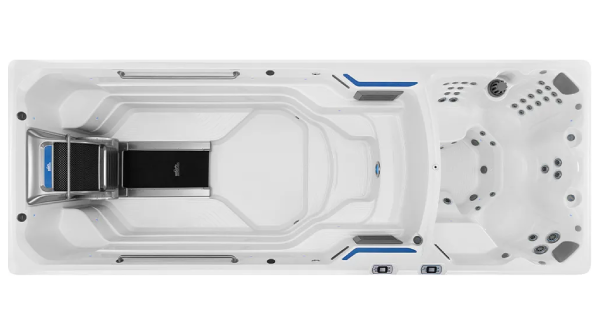

Endless Pools - E2000
Maximum Features for the Ultimate Experience
Swim, run, or exercise in temperate 85-degree water in the front, then unwind at 104 degrees inside the spa area at the back. The E2000 gives you complete control, without sacrifice.
Seating Capacity
4
Water Capacity
Swim Side: 2,045 Gallons (2,000 with treadmill)
Spa Side: 350 Gallons
Spa Side: 350 Gallons
Dimensions
20' L x 89" W x 58" H 610 cm / L x 226 cm W x 147 cm H
Depth 48" (122 cm)
Depth 48" (122 cm)
Weight
Dry: 4,215 Lbs Filled: 25,545 Lbs
Total Jets
36
Additional Specifications
Seating
SWIM SIDE
Bench Seat
SPA SIDE
4 Hydrotherapy Seats + Cool Down Seat
Bench Seat
SPA SIDE
4 Hydrotherapy Seats + Cool Down Seat
Hydrotherapy Jets - 36
SWIM SIDE
Not Applicable
SPA SIDE
2 Large Jets, 2 Rotary Jets,
6 Directional Jets, 26 Mini Jets
Not Applicable
SPA SIDE
2 Large Jets, 2 Rotary Jets,
6 Directional Jets, 26 Mini Jets
Hydromassage Jet Pump
SWIM SIDE
Not Applicable
SPA SIDE
2 - 2.5 HP Continuous Duty; 5.2 HP
Breakdown Torque - 1 Speed Pumps
Not Applicable
SPA SIDE
2 - 2.5 HP Continuous Duty; 5.2 HP
Breakdown Torque - 1 Speed Pumps
Water Features
SWIM SIDE
2 Illuminated Waterfalls
SPA SIDE
1 Illuminated Waterfall
2 Illuminated Waterfalls
SPA SIDE
1 Illuminated Waterfall
Water Care System
SWIM SIDE
UVC + CD Ozone
SPA SIDE
CD Ozone
UVC + CD Ozone
SPA SIDE
CD Ozone
Effective Filtration Area
SWIM SIDE
200 Square Feet
SPA SIDE
50 Square Feet
200 Square Feet
SPA SIDE
50 Square Feet
Lighting System
SWIM SIDE
14 Multi-Color LED Points of Light, & LED Illumination Bar
SPA SIDE
12 Multi-Color LED Points of Light
14 Multi-Color LED Points of Light, & LED Illumination Bar
SPA SIDE
12 Multi-Color LED Points of Light
Electrical Requirements
230v, 60Hz
60amp (30A/30A)
60amp (30A/30A)
Heater
4000w/230v
Current
Endless™ Pools Hydrodrive™ Technology
Power Unit /strong>
5 HP Hydraulic Power Unit
Control System
2 Touchscreen Control Panels 230v/60amp, 60 Hz, includes G.F.C.I. protected sub-pane
Substructure
14-Gauge Galvanized Steel Frame with Thermoformed ABS Base Pan
Energy Efficiency
Certified to the APSP 14 National Standard and the California Energy
Commission (CEC) in accordance with California Law
Commission (CEC) in accordance with California Law
Music Option
8 Speakers + Subwoofer, Bluetooth® Enabled
